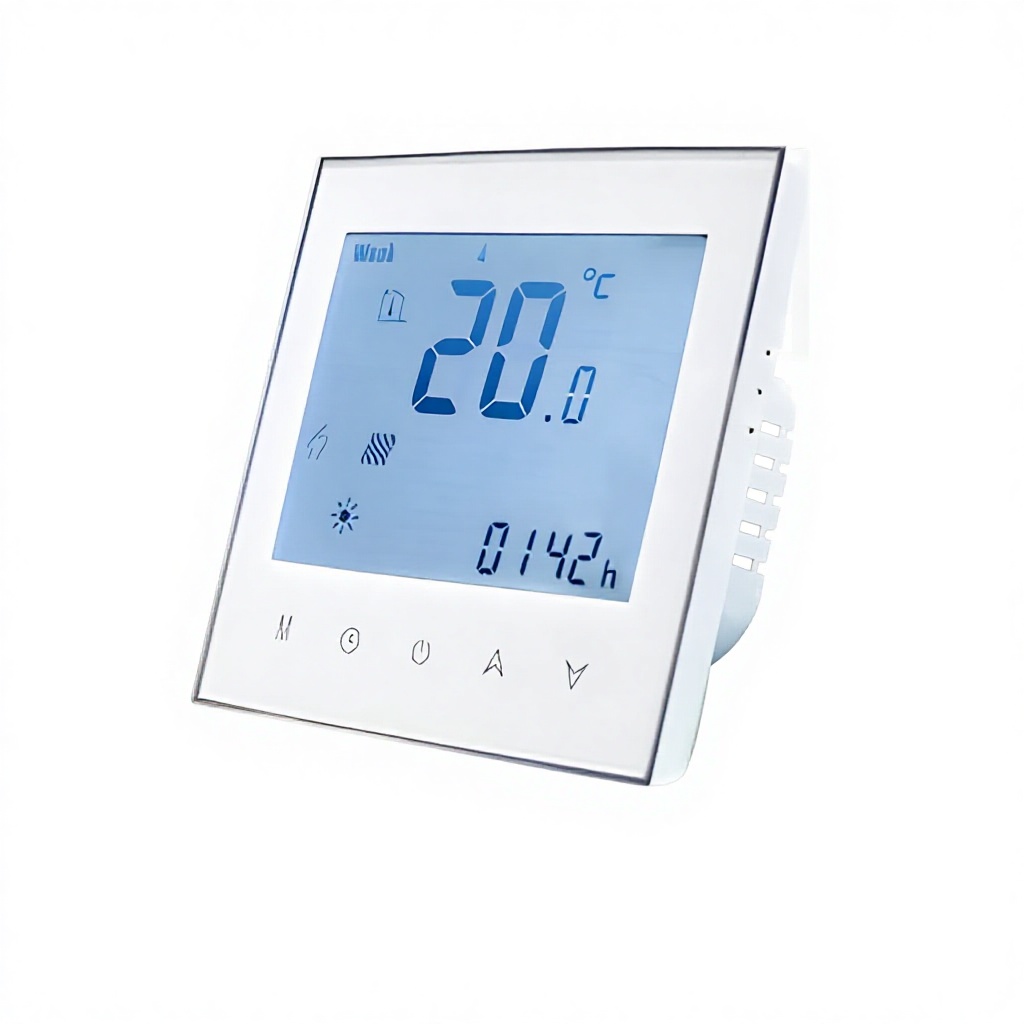

CCST1002 smart thermostat white front view showing digital LCD display, room temperature, and touch control panel.

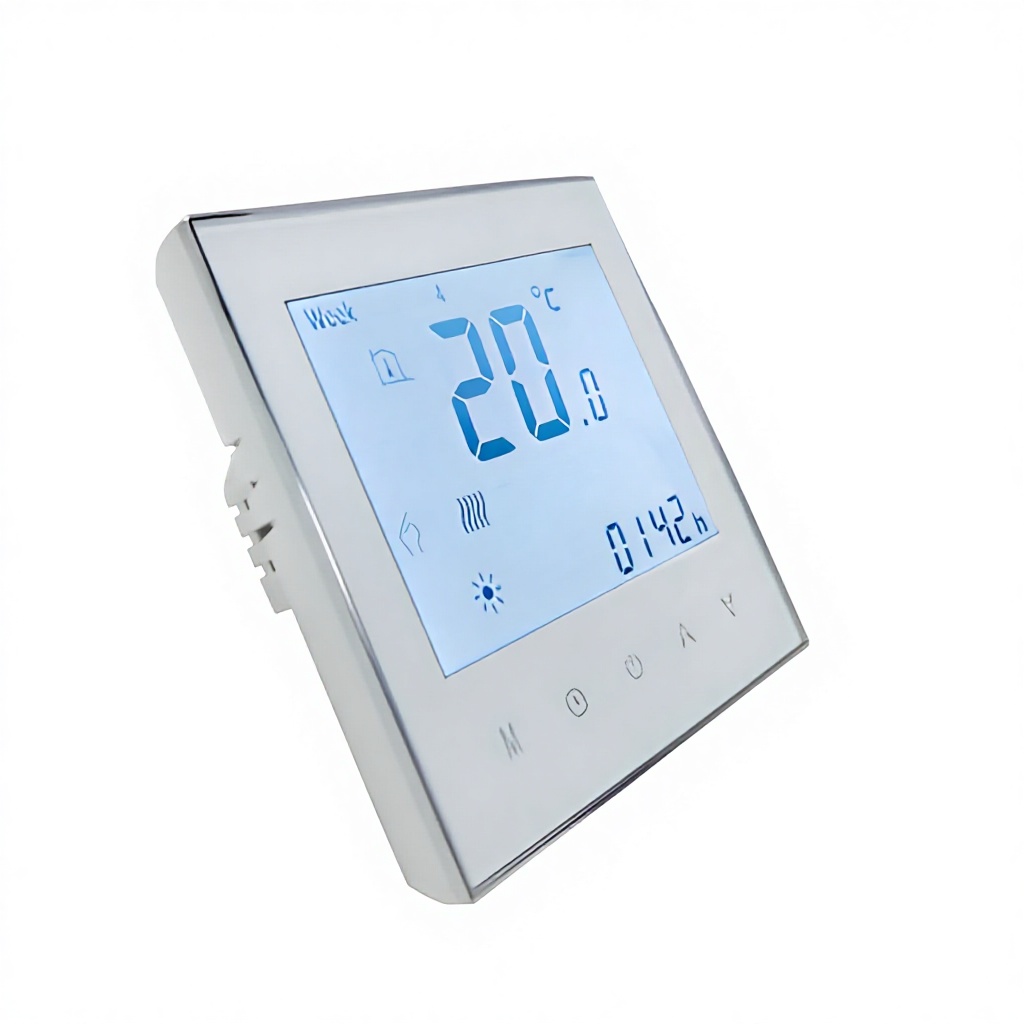

WiFi underfloor heating thermostat side perspective view with sleek silver frame and clear backlit LCD screen.

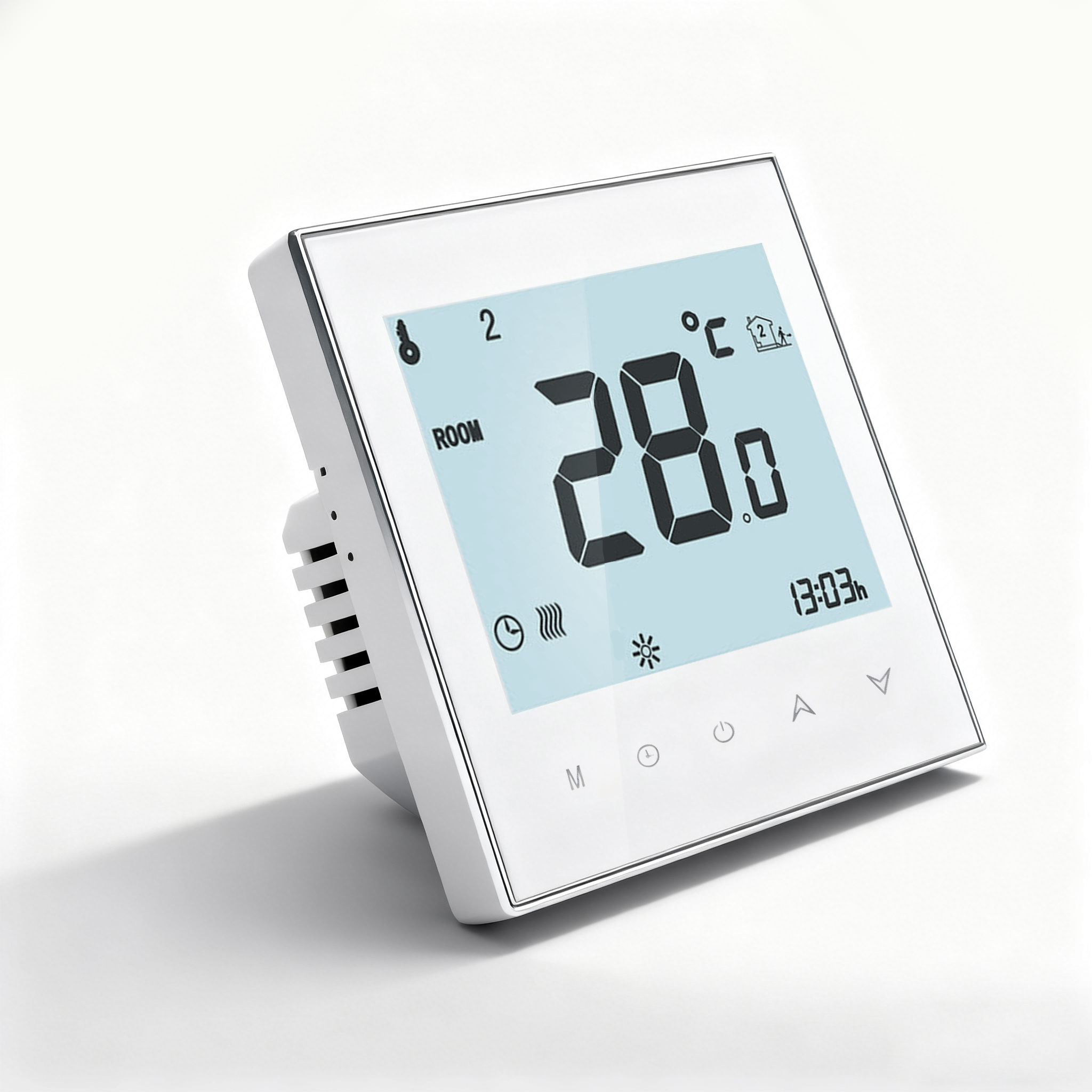

5+1+1 programmable room thermostat perspective view displaying time, temperature setpoint, and operation icons.

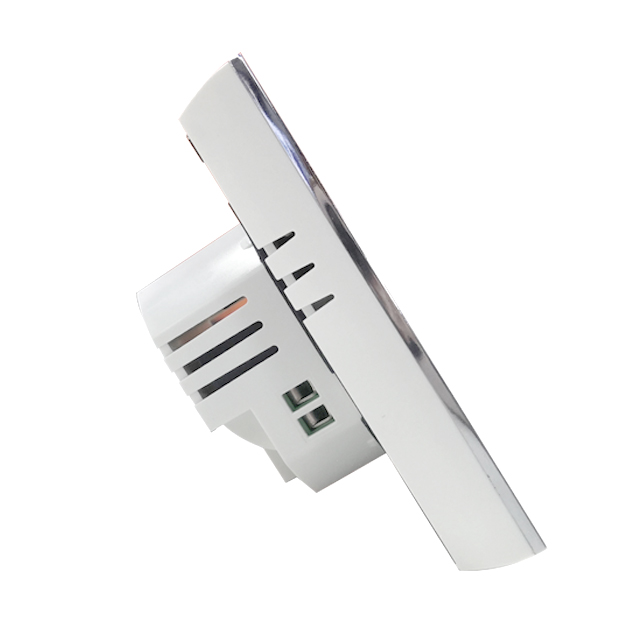

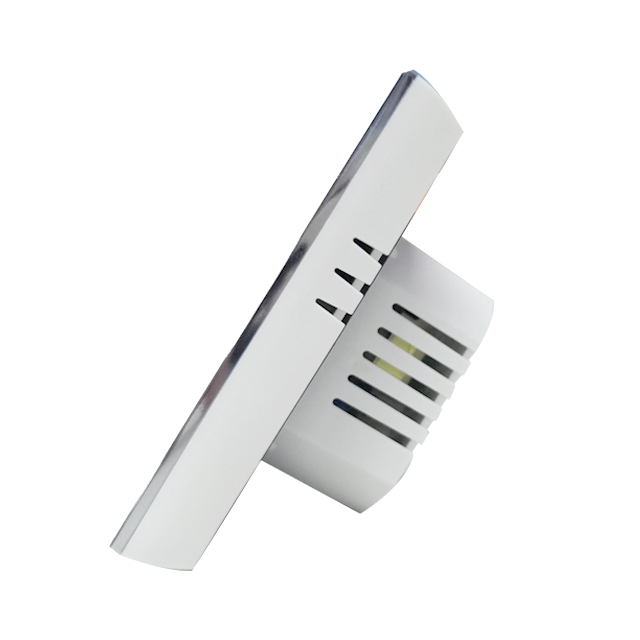

Ultra-thin smart room thermostat side profile view showing modern flush design and side heat dissipation vents.

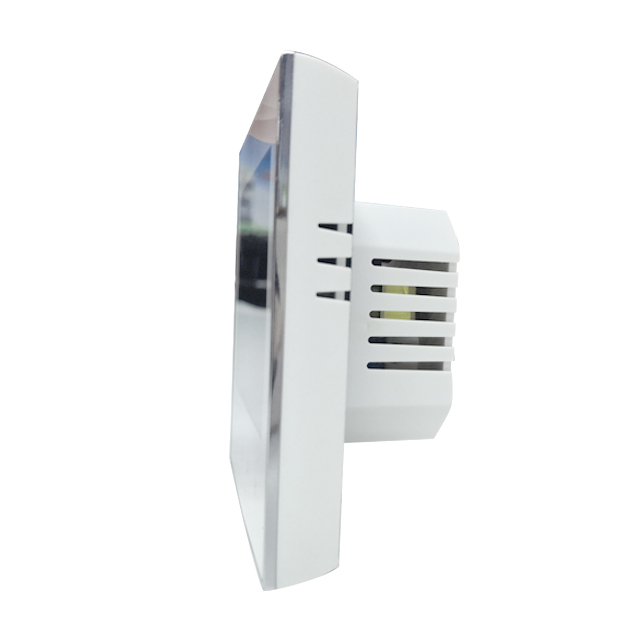

Smart room thermostat profile side view showing flush-mounted housing depth and side ventilation slots.
CCST1002 smart thermostat white front view showing digital LCD display, room temperature, and touch control panel.
WiFi underfloor heating thermostat side perspective view with sleek silver frame and clear backlit LCD screen.
5+1+1 programmable room thermostat perspective view displaying time, temperature setpoint, and operation icons.
Ultra-thin smart room thermostat side profile view showing modern flush design and side heat dissipation vents.
Smart room thermostat profile side view showing flush-mounted housing depth and side ventilation slots.
CCST1002

CCST1002 220V Smart Thermostat

Standard UnitUnderfloor Heating System

The CCST1002 is a versatile 220V smart thermostat engineered for water floor heating, electric heating (16A), and gas boiler systems. Featuring an 86x86mm standard housing, a bright white backlit touch screen, and ±0.5°C temperature accuracy, it delivers 5+1+1 weekly programmable schedules for maximum energy savings. Easily managed via the Tuya Smart Life app and compatible with voice assistants like Alexa and Google Home, it brings ultimate convenience and modern control to your home heating.

Global Warranty Expert Tech Support

Specifications

Power Source95-230VAC
Current Load5A (Water heating & boiler); 16A (electric heating)
Other FeatureOptional external sensors, ECO energy-saving mode, power failure memory
Control TypeWater heating, Electric heating, Boiler
Accuracy±0.5°C
Room temperature setting range5 ~ 35°C (customizable)
Screen TypeLCD display
ConnectivityWiFi (2.4G), Zigbee 3.0, Modbus RS485
Smart LinkageAmazon Alexa, Google Assistance, Yandex Alice
Smart Scheduling5+1+1 day Programmable Schedule Mode
Housing MaterialPC+ABS Anti-flammable
MountingFlush-Mount (Fits 86mm Square & 60mm European Round Boxes)
Dimensions86 × 86 × 39mm
