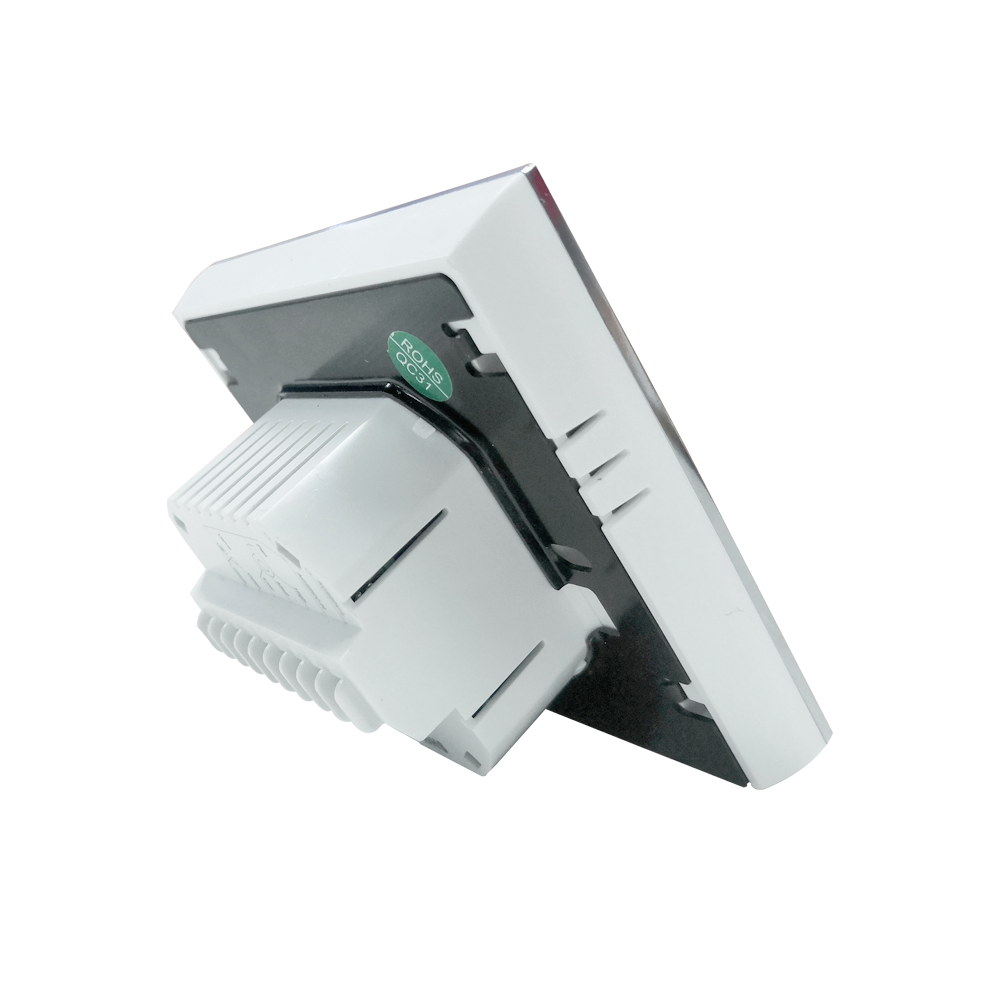

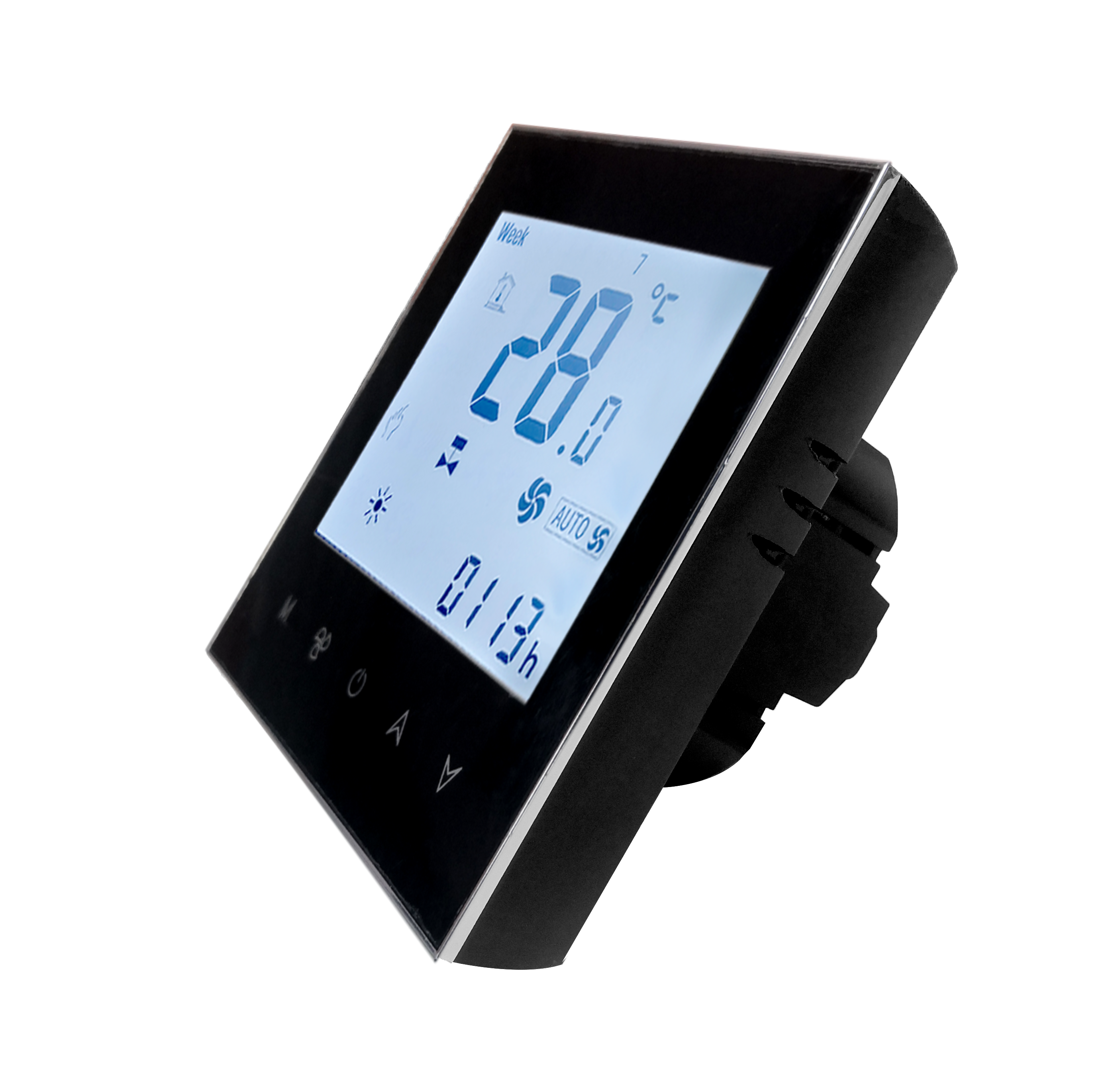

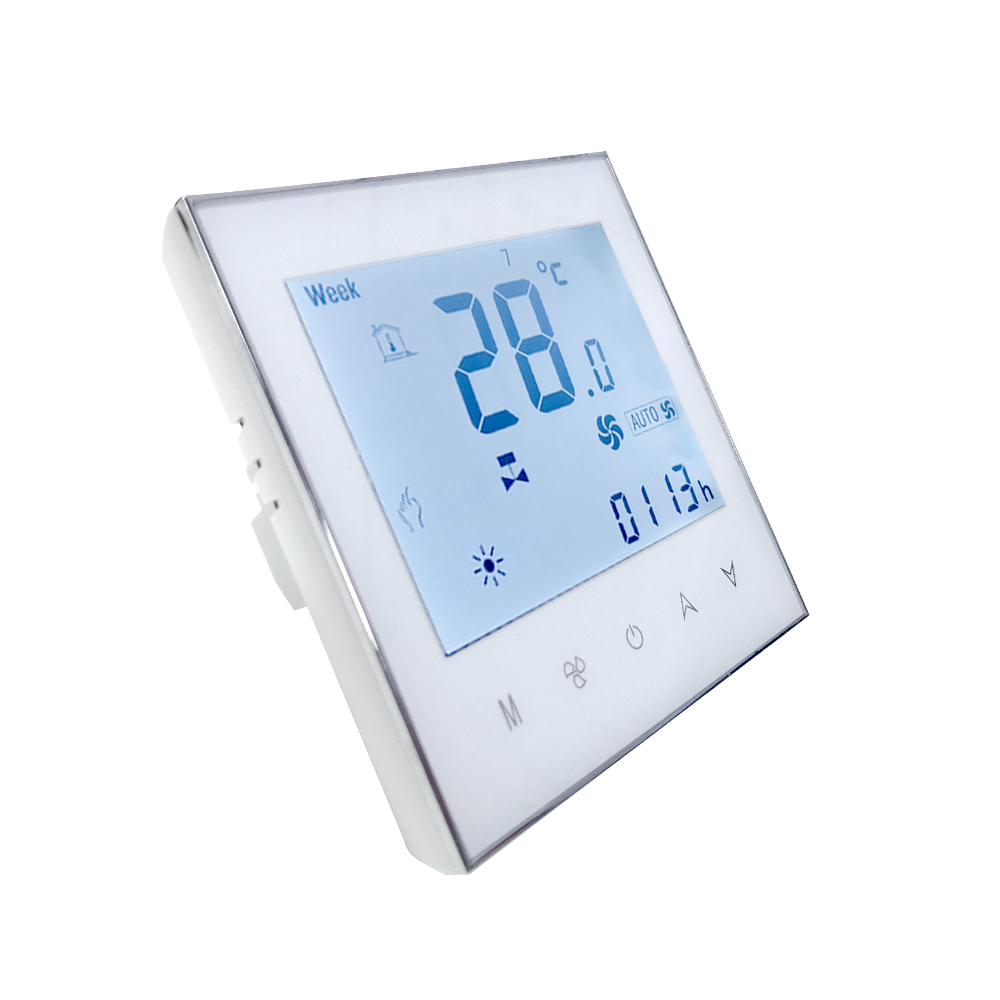

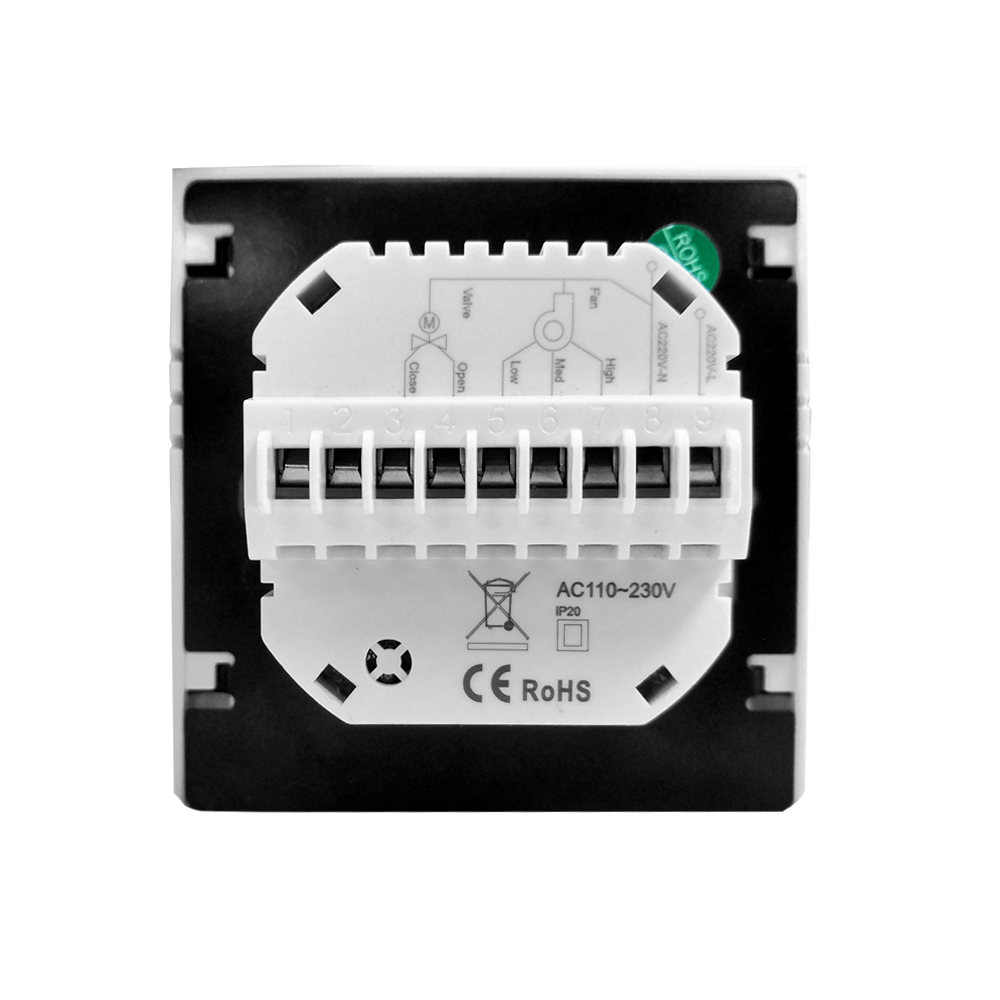

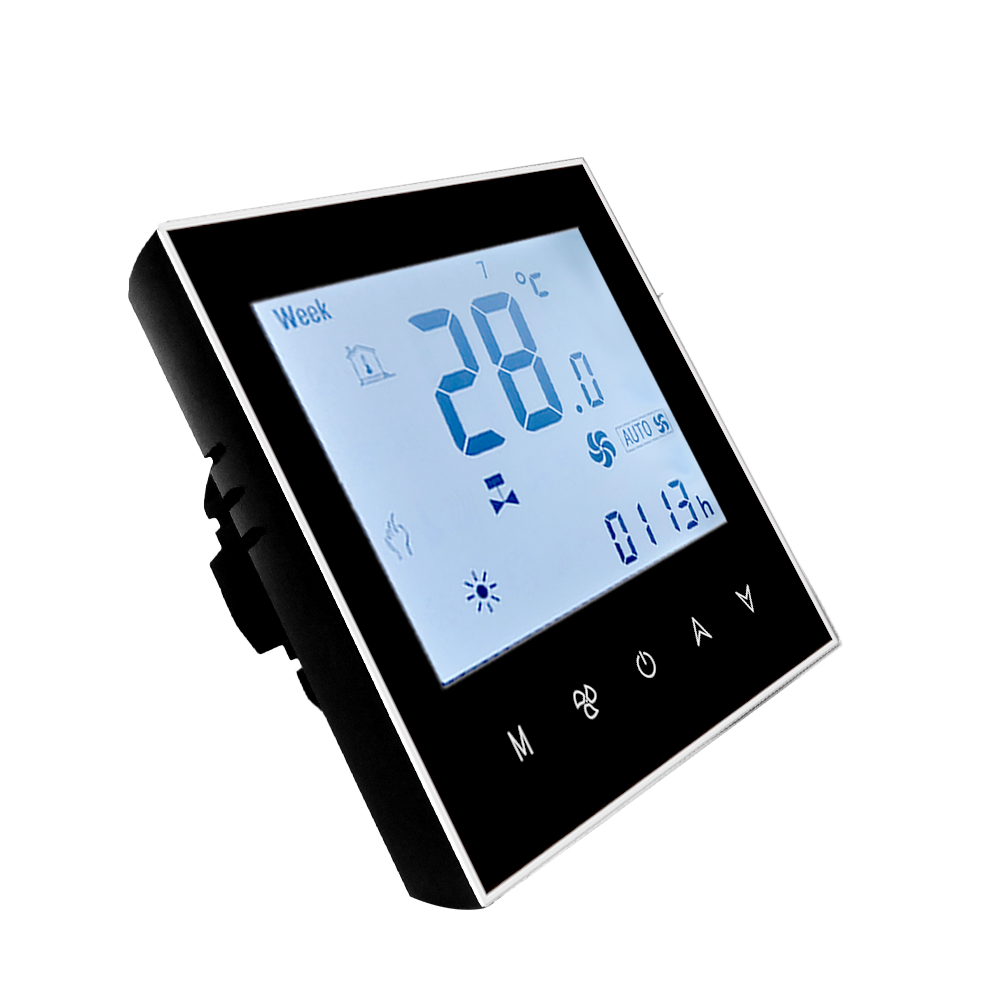

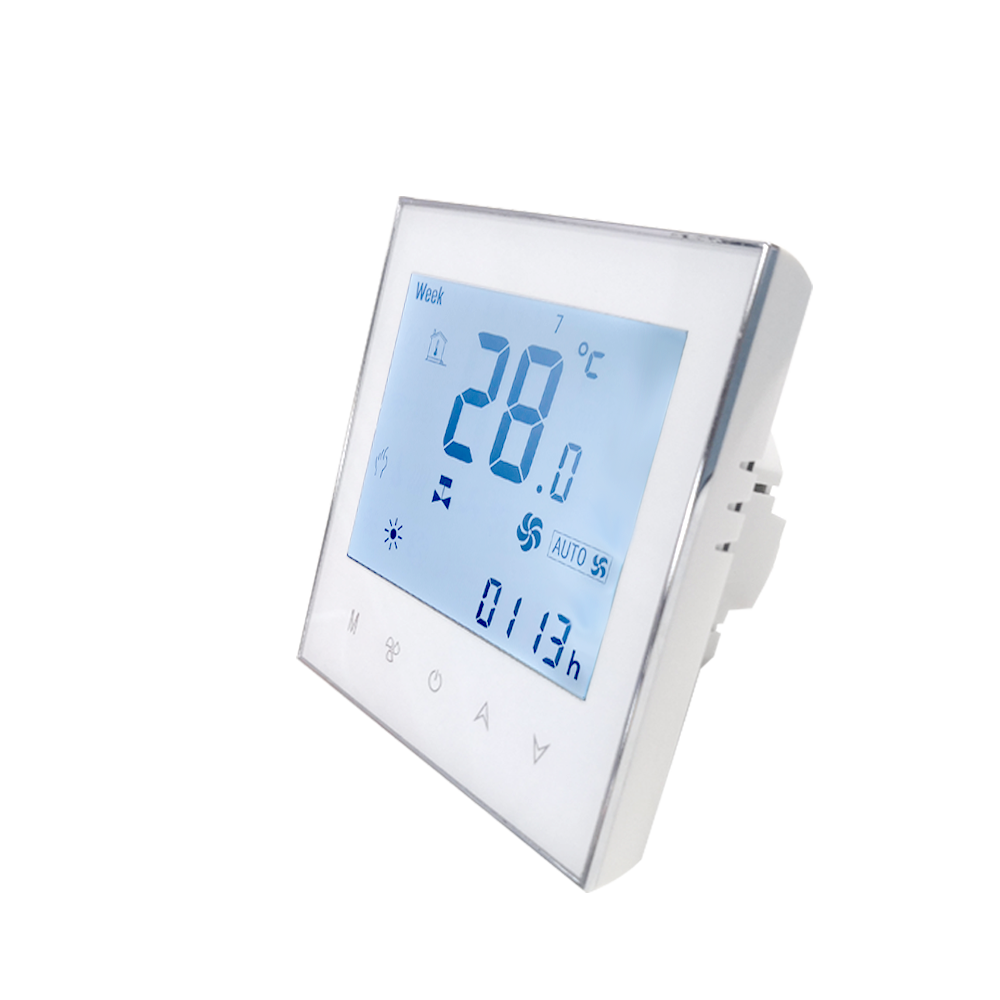

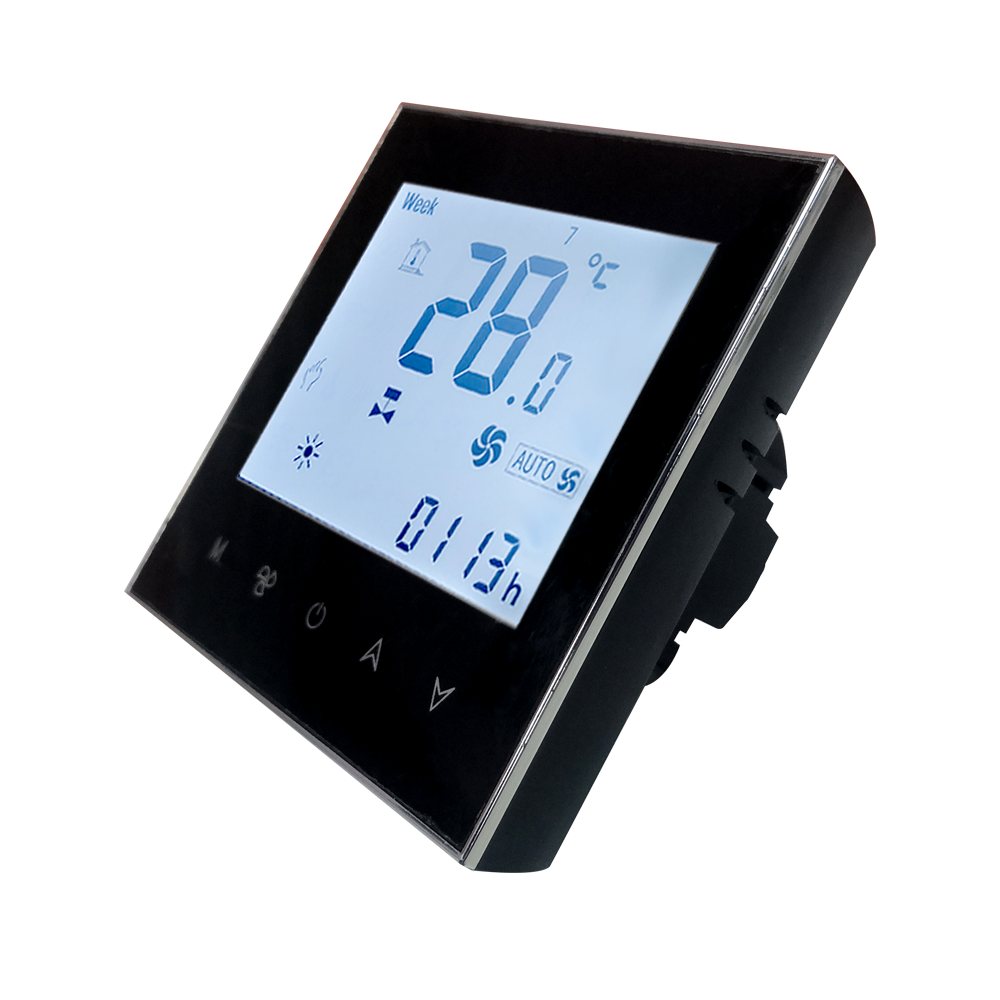

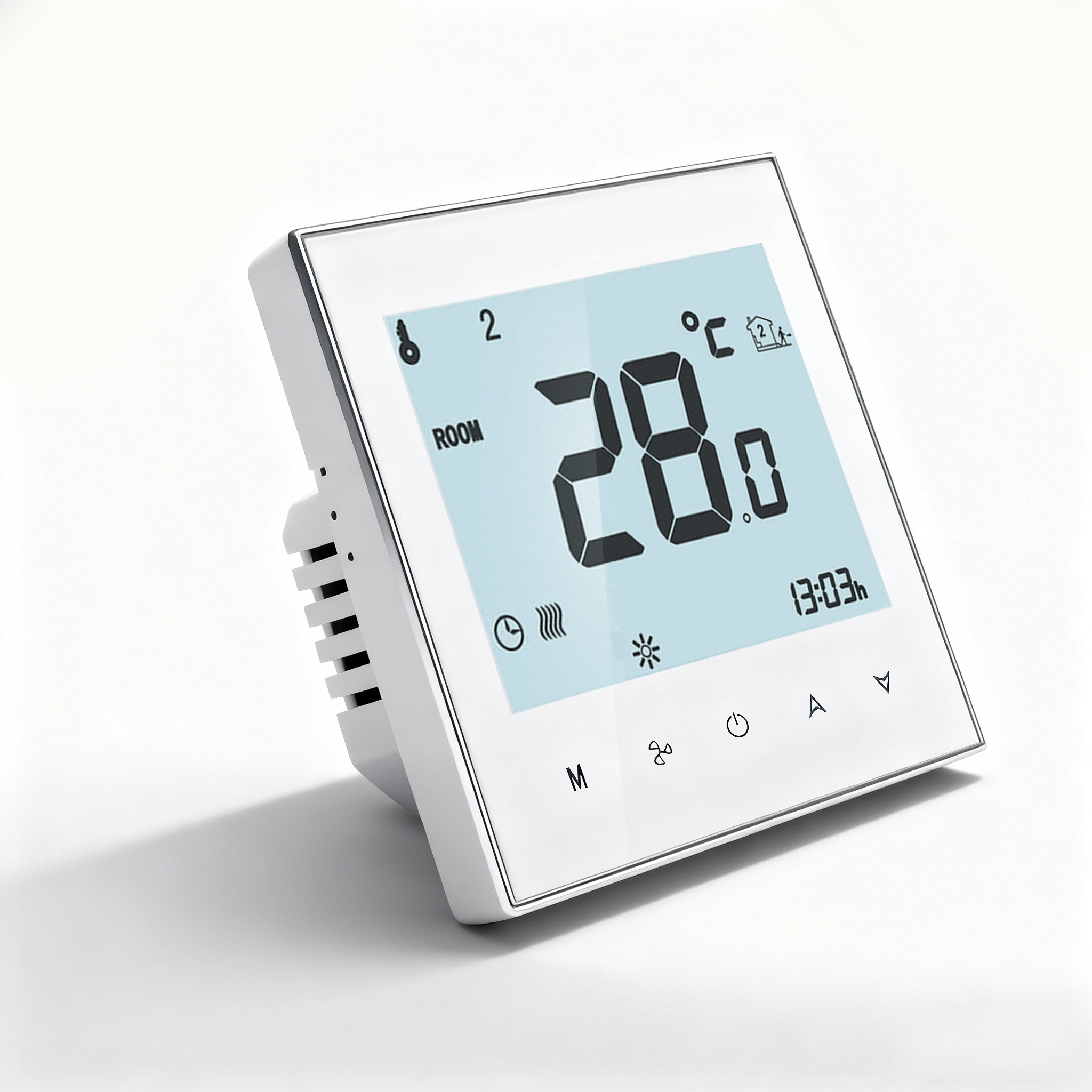

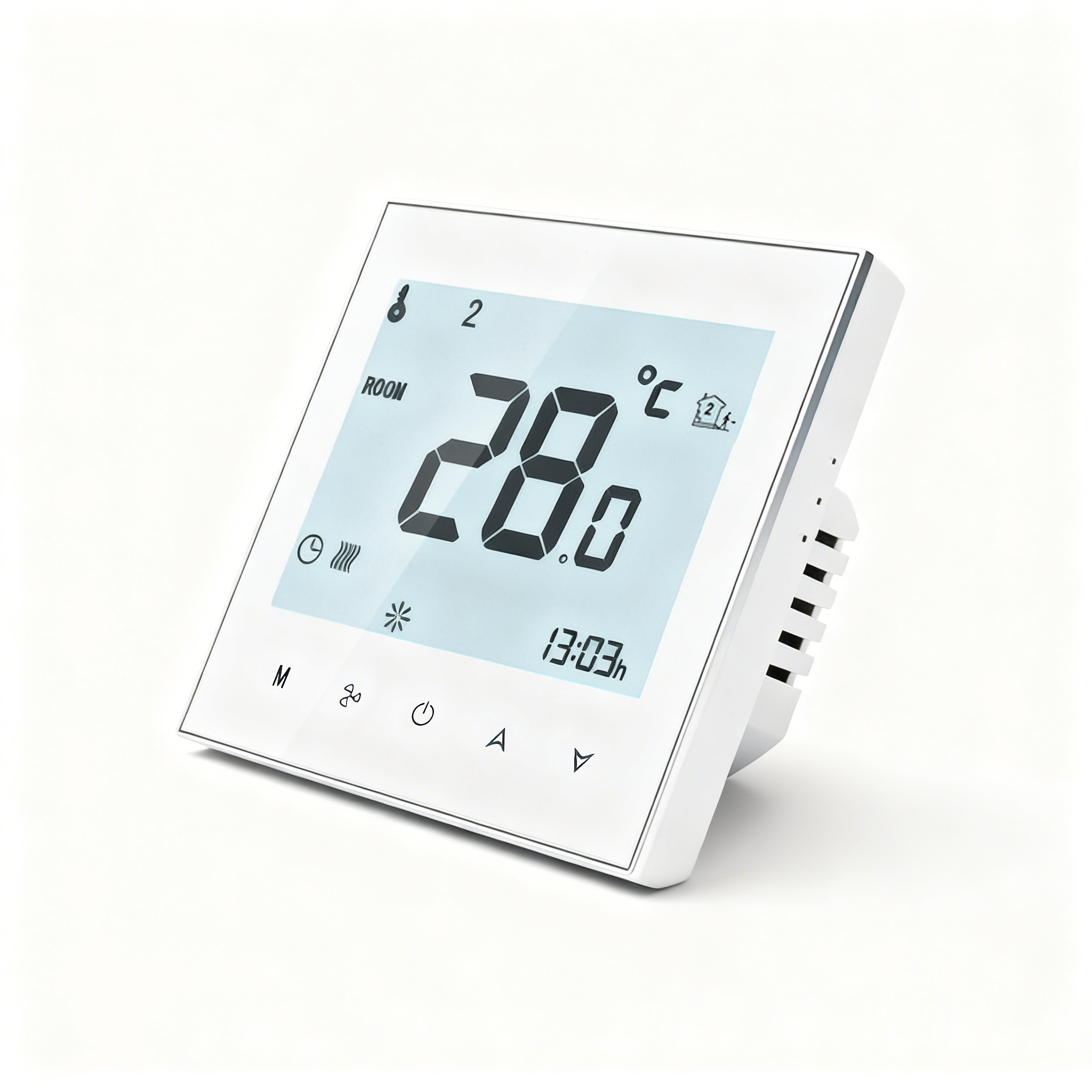

Model: CCST1001

CCST1001

CUSTOMIZABLEFan Coil System

CCST1001 series Modern Round Touch Screen Room Thermostats are designed to in/off control the fans and valves in air conditioner applications via comparison of the room temperature and setting temp.as reaching the aim of comfort and saving energy.

Power Source95-230VAC, 24VAC
Fan Type3 fan speed
Current LoadFan: 5A (Resistive) / Valve: 3A (Resistive)
Control Type2/4-Pipe FCU (On/Off valve or 0-10V Modulating valve)
Accuracy±0.5°C
Room temperature setting range5 ~ 35°C (customizable)
Screen TypeLCD display
ConnectivityWiFi (2.4G), Modbus RS485
Smart LinkageAmazon Alexa, Google Assistance, Yandex Alice
Smart Scheduling5+1+1 day Programmable Schedule Mode
Housing MaterialPC+ABS Anti-flammable
MountingFlush-Mount (Fits 86mm Square & 60mm European Round Boxes)
Dimensions86 ×86 × 45mm
Other FeatureOptional external sensors, ECO energy-saving mode, power failure memory
Global Warranty Tech Support
